In this demonstration I pretend show you how to think a parallel problem and the power of to use RootMpi to solve it using 4 processors exactly.
I want to calculate the parallel surface and volume of a sphere.

Parallel Sphere Volume

To calculate Volume I can calculate $ V=\int\limits_{0}^{r} r^2-(x^2)\,dx. $ . I can calculate it using ROOT::Mpi::Math::TIntegratorWrapper that is RootMpi's class with parallelization ready.

/*********************************************************************/
   /*Section to calculate volume with parallel multimensional integrator*/
   /*********************************************************************/
   //integrator creation root's style
   ROOT::Math::Functor1D function(&sphere_function);

   ROOT::Math::Integrator integrator;
   integrator.SetFunction(function);

   //Mpi's integrator wrapper, integrator from ROOT in one dimension
   ROOT::Mpi::Math::TIntegratorWrapper MpiIntegrator(&integrator);

   //integrate in parallel and send the result to rank zero, intervar [0,radius]
   MpiIntegrator.Integrate(0, 0, radius);

Parallel Sphere Surface

(wait 5 secs to render latex)
To calculate the surface I can express spherical coordinates in rectangular coordinates in this way:

$x = rcos(\theta)sin(\phi)$
$y = rsin(\theta)sin(\phi)$
$z = rcos(\phi)$

$\phi \in [0,2\pi] and\ \theta \in [0,\pi]$
Range for process
Process 0 $\phi \in [0,0.5\pi] and\ \theta \in [0,\pi]$
Process 1 $\phi \in [0.5,\pi] and\ \theta \in [0,\pi]$
Process 2 $\phi \in [1,1.5\pi] and\ \theta \in [0,\pi]$
Process 3 $\phi \in [1.5,2\pi] and\ \theta \in [0,\pi]$
In every section I evaluate the intervals with delta=0.01, then I have almost 50000 points in every process.

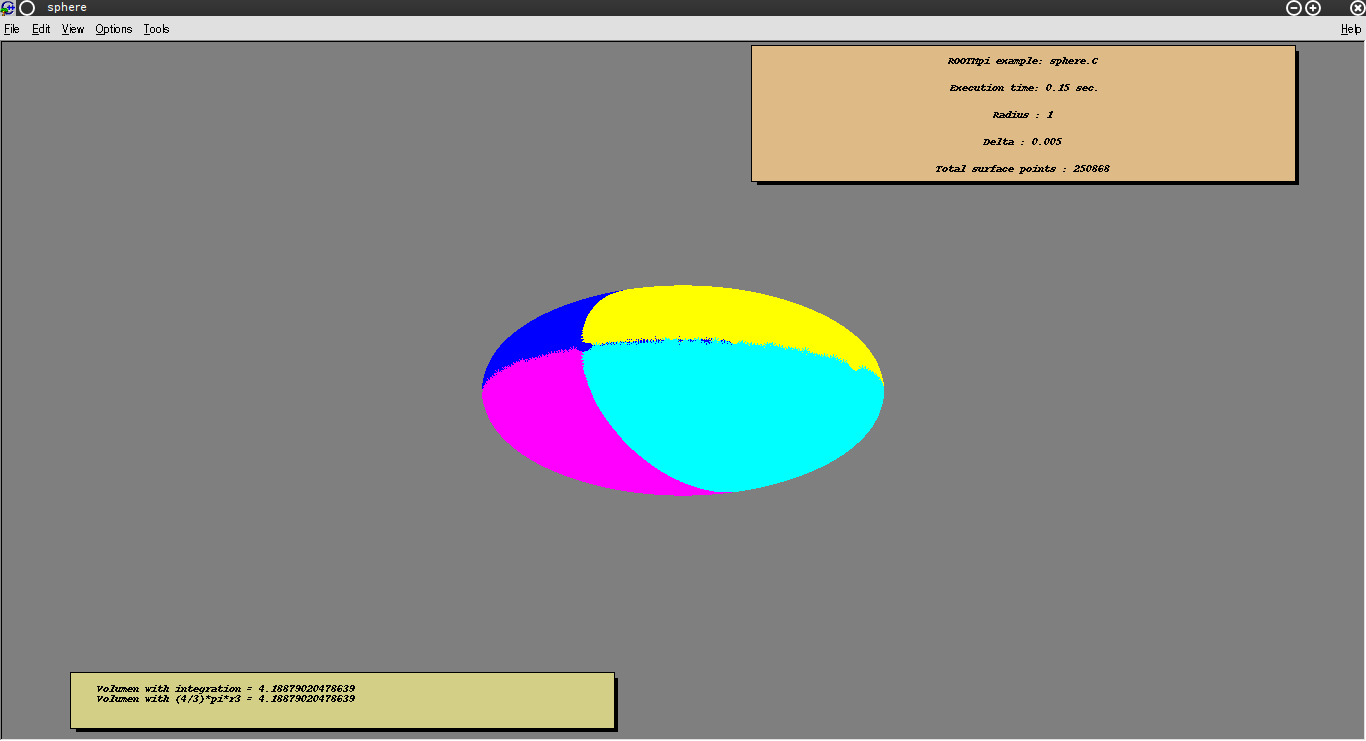

Every color is the region calculate in different processor, the points are encapsulated in a object TPolyMarker3D and sent to root process(zero) and painted.
Reference

This is the macro for ROOT interpreter.

Go to Index

SphereCode

Copy To Clipboard

  1 . /*******************************************************************************/
  2 . /*Author: Omar Andres Zapata Mesa  Ago 2012                                    */
  3 . /*this example calculate parallel surface's regions in a sphere and the volume.*/
  4 . /*need 4 process to work, beacase the sphere was splitted into four parts.     */
  5 . /*******************************************************************************/
  6 . #include <Rtypes.h>
  7 . #include <Math/Math.h>
  8 . #include <Math/Functor.h>
  9 . #include <Math/Integrator.h>
 10 .
 11 . gSystem->Load("libRMpi");
 12 .
 13 . Double_t delta=0.01;//delta to iterate points in the surface
 14 . Double_t radius=10; //sphere radius
 15 . Double_t radius2=radius*radius; //radius' square
 16 . Double_t theta, phi, x,y,z;
 17 . Int_t point=0;
 18 . /************************************************************************************/
 19 . /*this is the function for positive region of a sphere. use to integrate the volume.*/
 20 . /************************************************************************************/
 21 . Double_t sphere_function(const Double_t param)
 22 . {
 23 .   Double_t x,y;
 24 .   x=param;//coor x
 25 .   return 2*M_PI*(radius2-(x*x));//funtion sphere_function(r,x)=V(r,x)= 2*pi*(r2-x2)
 26 . }
 27 .
 28 . void sphere()
 29 . {
 30 .    /********************/
 31 .    /*Mpi initialization*/
 32 .    /********************/
 33 .    ROOT::Mpi::TEnvironment env(gApplication->Argc(), gApplication->Argv());
 34 .    ROOT::Mpi::TIntraCommunicator world;
 35 .
 36 .    /*********************************/
 37 .    /*Error control, need 4 processes*/
 38 .    /*********************************/
 39 .    if(world.Size()!=4)
 40 .    {
 41 .       std::cout<<"Error: You need run with 4 processes exactly, the sphere was spplitted in four regions. \nExample: mpirun -np 4 root -l  sphere.C\n";
 42 .       std::cout.flush();
 43 .       world.Abort(6);
 44 .    }
 45 .
 46 .    /*********************************************************************/
 47 .    /*Section to calculate volume with parallel multimensional integrator*/
 48 .    /*********************************************************************/
 49 .    //integrator creation root's style
 50 .    ROOT::Math::Functor1D function(&sphere_function);
 51 .
 52 .    ROOT::Math::Integrator integrator;
 53 .    integrator.SetFunction(function);
 54 .
 55 .    //Mpi's integrator wrapper, integrator from ROOT in one dimension
 56 .    ROOT::Mpi::Math::TIntegratorWrapper MpiIntegrator(&integrator);
 57 .
 58 .    //integrate in parallel and send the result to rank zero, intervar [0,radius]
 59 .    MpiIntegrator.Integrate(0, 0, radius);
 60 .
 61 .
 62 .    /*****************************************************************************************/
 63 .    /*this is the root process,calculate the surface z=+qsrt(1−(x2+b2)) for x∈[−1,0],y∈[−1,1]*/
 64 .    /*and recv the other surface regions in TPolyMarker3D object from others ranks           */
 65 .    /*****************************************************************************************/
 66 .    if (world.Rank() == 0) {
 67 .       gBenchmark->Start("sphere");
 68 .       // create and open a canvas
 69 .       TCanvas *canvas = new TCanvas("sphere", "sphere", 300, 10, 700, 500);
 70 .       canvas->SetFillColor(14);
 71 .       // creating view
 72 .       TView *view = TView::CreateView(1, 0, 0);
 73 .       view->RotateView(90,-10);
 74 .       view->SetRange(-radius*2, -radius*2, -2*radius, 2*radius, 2*radius, 2*radius);
 75 .       // create a PolyMarker3D for region/segment 1 calculate in rank 0(this rank)
 76 .       TPolyMarker3D *surfaceSeg13d = new TPolyMarker3D();
 77 .
 78 .       for (theta = 0; theta <0.5*M_PI ; theta+= delta) {
 79 .          for (phi = 0; phi <M_PI; phi += delta) {
 80 .
 81 . 	   x=radius*cos(theta)*sin(phi);
 82 . 	   y=radius*sin(theta)*sin(phi);
 83 . 	   z=radius*cos(phi);
 84 .             // set points
 85 .             surfaceSeg13d->SetPoint(point, x, y, z);
 86 .             point++;
 87 .          }
 88 .       }
 89 .       // set marker size, color & style
 90 .       surfaceSeg13d->SetMarkerSize(1);
 91 .       surfaceSeg13d->SetMarkerColor(world.Rank() + world.Size());
 92 .       surfaceSeg13d->SetMarkerStyle(1);
 93 .       //drawing region 1
 94 .       surfaceSeg13d->Draw();
 95 .
 96 .       //getting region 2 from rank 1
 97 .       TPolyMarker3D *surfaceSeg23d = new TPolyMarker3D;
 98 .       world.RecvObject(1, 1, *surfaceSeg23d);
 99 .       surfaceSeg23d->Draw();
100 .
101 .       //getting region 3 from rank 2
102 .       TPolyMarker3D *surfaceSeg33d = new TPolyMarker3D;
103 .       world.RecvObject(2, 1, *surfaceSeg33d);
104 .       surfaceSeg33d->Draw();
105 .
106 .       //getting region 4 from rank 3
107 .       TPolyMarker3D *surfaceSeg43d = new TPolyMarker3D;
108 .       world.RecvObject(3, 1, *surfaceSeg43d);
109 .       surfaceSeg43d->Draw();
110 .
111 .       Char_t timeStr[60];
112 .       Char_t pointsStr[100];
113 .       Char_t radiusStr[100];
114 .       Char_t deltaStr[100];
115 .       gBenchmark->Show("sphere");
116 .
117 .       Float_t ct = gBenchmark->GetCpuTime("sphere");
118 .       sprintf(timeStr, "Execution time: %g sec.", ct);
119 .       sprintf(radiusStr, "Radius : %g", radius);
120 .       sprintf(deltaStr, "Delta : %g", delta);
121 .       sprintf(pointsStr, "Total surface points : %g", point*4);
122 .
123 .       TPaveText *text = new TPaveText(0.1, 0.6, 0.9, 0.99);
124 .       text->SetFillColor(42);
125 .       text->AddText("ROOTMpi example: sphere.C");
126 .       text->AddText(timeStr);
127 .       text->AddText(radiusStr);
128 .       text->AddText(deltaStr);
129 .       text->AddText(pointsStr);
130 .       text->Draw();
131 .
132 .       //sphere volume  V=(4/3)*pi*r3
133 .       //and compare the result integration's volume
134 .       Char_t volumeStr[100];
135 .       Double_t volume= MpiIntegrator.Result();
136 .       Double_t volumeTeo=(4/3.0)*M_PI*(radius*radius*radius);
137 .
138 .       sprintf(volumeStr, "Volumen with integration = %.15g \nVolumen with (4/3)*pi*r3 = %.15g", volume,volumeTeo);
139 .
140 .       TPaveText *volumeText = new TPaveText(-0.1, -0.81, -0.9, -0.97);
141 .       volumeText->SetFillColor(41);
142 .       volumeText->SetTextAlign(11);
143 .       volumeText->AddText(volumeStr);
144 .       volumeText->Draw();
145 .    }
146 .    /*************************************************************************/
147 .    /*this rank calculate the surface for theta ∈[0.5pi,pi] and phi ∈[0,pi]  */
148 .    /*and send the surface regions in TPolyMarker3D object to rank root zero */
149 .    /*************************************************************************/
150 .    if (world.Rank() == 1) {
151 .       TPolyMarker3D *surfaceSeg23d = new TPolyMarker3D();
152 .
153 .       for (theta = 0.5*M_PI; theta <M_PI ; theta+= delta) {
154 .          for (phi = 0; phi <M_PI; phi += delta) {
155 .
156 . 	   x=radius*cos(theta)*sin(phi);
157 . 	   y=radius*sin(theta)*sin(phi);
158 . 	   z=radius*cos(phi);
159 .             // set points
160 .             surfaceSeg23d->SetPoint(point, x, y, z);
161 .             point++;
162 .          }
163 .       }
164 .       // set marker size, color & style
165 .       surfaceSeg23d->SetMarkerSize(1);
166 .       surfaceSeg23d->SetMarkerColor(world.Rank() + world.Size());
167 .       surfaceSeg23d->SetMarkerStyle(1);
168 .       //send surface points to root process
169 .       world.SendObject(0, 1, *surfaceSeg23d);
170 .    }
171 .    /*************************************************************************/
172 .    /*this rank calculate the surface for theta ∈[pi,1.5pi] and phi ∈[0,pi]  */
173 .    /*and send the surface regions in TPolyMarker3D object to rank root zero */
174 .    /*************************************************************************/
175 .    if (world.Rank() == 2) {
176 .       TPolyMarker3D *surfaceSeg33d = new TPolyMarker3D();
177 .       for (theta = M_PI; theta <1.5*M_PI ; theta+= delta) {
178 .          for (phi = 0; phi <M_PI; phi += delta) {
179 .
180 . 	   x=radius*cos(theta)*sin(phi);
181 . 	   y=radius*sin(theta)*sin(phi);
182 . 	   z=radius*cos(phi);
183 .             // set points
184 .             surfaceSeg33d->SetPoint(point, x, y, z);
185 .             point++;
186 .          }
187 .       }
188 .       // set marker size, color & style
189 .       surfaceSeg33d->SetMarkerSize(1);
190 .       surfaceSeg33d->SetMarkerColor(world.Rank() + world.Size());
191 .       surfaceSeg33d->SetMarkerStyle(1);
192 .       //send surface points to root process
193 .       world.SendObject(0, 1, *surfaceSeg33d);
194 .    }
195 .    /*************************************************************************/
196 .    /*this rank calculate the surface for theta ∈[1.5pi,2pi] and phi ∈[0,pi]  */
197 .    /*and send the surface regions in TPolyMarker3D object to rank root zero */
198 .    /*************************************************************************/
199 .    if (world.Rank() == 3) {
200 .       TPolyMarker3D *surfaceSeg43d = new TPolyMarker3D();
201 .       for (theta = 1.5*M_PI; theta <2*M_PI ; theta+= delta) {
202 .          for (phi = 0; phi <M_PI; phi += delta) {
203 .
204 . 	   x=radius*cos(theta)*sin(phi);
205 . 	   y=radius*sin(theta)*sin(phi);
206 . 	   z=radius*cos(phi);
207 .             // set points
208 .             surfaceSeg43d->SetPoint(point, x, y, z);
209 .             point++;
210 .          }
211 .       }
212 .       // set marker size, color & style
213 .       surfaceSeg43d->SetMarkerSize(1);
214 .       surfaceSeg43d->SetMarkerColor(world.Rank() + world.Size());
215 .       surfaceSeg43d->SetMarkerStyle(1);
216 .       //send surface points to root process
217 .       world.SendObject(0, 1, *surfaceSeg43d);
218 .    }
219 . }

Go to Index

SphereVideo

Reproductor Flash no disponible.

Created by Omar Andres Zapata Mesa.
Voice by Gerardo Gutierrez. (Thanks!)

Go to Index

Parallel Wave Animation

In this demonstration we are going to animate a sin wave. We split it into n-1 processes, the process root(zero) gets the points from other processes and it sends a broadcast with the new angle to calculate the height, and repeat the procedure.
WARNING this animation require OpenGL support in your pc.

Go to Index

WaveCode

  1 . /*******************************************************************************/
  2 . /*Author: Omar Andres Zapata Mesa  Ago 2012                                    */
  3 . /*this example calculate parallel wave animation                               */
  4 . /*work with any number(n) of processes but the wave is splitted into n-1 parts */
  5 . /*******************************************************************************/
  6 . #include <Rtypes.h>
  7 . #include <Math/Math.h>
  8 . #include <TF1.h>
  9 . #include <TPolyMarker3D.h>
 10 . Double_t delta=0.1;
 11 . Double_t min=0,max=6*M_PI;
 12 . Double_t angle=M_PI;
 13 . Double_t init,end;
 14 . Int_t counter=0;
 15 .
 16 . UInt_t rep=1000;
 17 . UInt_t delay=100;
 18 .
 19 . UInt_t MPI_SUCCESS=0;
 20 . /********************/
 21 . /*Mpi initialization*/
 22 . /********************/
 23 . ROOT::Mpi::TEnvironment env(gApplication->Argc(), gApplication->Argv());
 24 . ROOT::Mpi::TIntraCommunicator world;
 25 .
 26 . TCanvas *canvas = NULL;
 27 . TView   *view   = NULL;
 28 .
 29 .
 30 . void Init()
 31 . {
 32 .  gStyle->SetCanvasPreferGL(true);
 33 .  gStyle->SetFrameFillColor(42);
 34 .  canvas = new TCanvas("canvas", "wave", 300, 10, 700, 500);
 35 .  canvas->SetFillColor(14);
 36 .  view = TView::CreateView(1, 0, 0);
 37 .  view->RotateView(90,0);
 38 . }
 39 .
 40 . void Animate()
 41 . {
 42 .      if (!gROOT->GetListOfCanvases()->FindObject("canvas")){
 43 .        world.Abort(MPI_SUCCESS);
 44 .     };
 45 .      gPad->Clear();
 46 .      for(int i=1;i<world.Size();i++)
 47 .       {
 48 .       //getting wave sections from ranks>1
 49 .       TPolyMarker3D *Section = new TPolyMarker3D();
 50 .       world.RecvObject(i, 1, *Section);
 51 .       Section->Draw();
 52 .       }
 53 .       gPad->Modified();
 54 .       gPad->Update();
 55 .       angle += 0.05*M_PI;
 56 .       world.BcastSendScalar(angle,0);
 57 .       counter++;
 58 .       if(counter<rep) world.BcastSendScalar(true,0);
 59 .       else world.BcastSendScalar(false,0);
 60 . }
 61 .
 62 .
 63 . void wave()
 64 . {
 65 .
 66 .    /**************************************************/
 67 .    /*rank zero(root) dont calculate wave, init viewer*/
 68 .    /*and recv wave sections from other processes     */
 69 .    /**************************************************/
 70 .    if (world.Rank() == 0) {
 71 .       Init();
 72 .       TTimer *timer = new TTimer(delay);
 73 .       timer->SetCommand("Animate()");
 74 .       Char_t timeStr[60];
 75 .       Char_t pointsStr[100];
 76 .       Char_t deltaStr[100];
 77 .       timer->TurnOn();
 78 .   }else{
 79 .    Double_t step = fabs(min - max) / (world.Size()-1);
 80 .
 81 .    init = min + (world.Rank()-1) * step;
 82 .    end  = init + step;
 83 .    cout<<"rank="<<world.Rank()<<" init="<<init<<" end="<<end<<"\n";
 84 .    Int_t flag=true;
 85 .    while(flag){
 86 .      TPolyMarker3D *Section=new TPolyMarker3D();
 87 .      counter=0;
 88 .           for(Double_t t=init;t<end;t+=delta)
 89 .           {
 90 .                 Section->SetPoint(counter,t,sin(t+angle),0);
 91 .                 counter++;
 92 . 	  }
 93 .       // set marker size, color & style
 94 .       Section->SetMarkerSize(1);
 95 .       Section->SetMarkerColor(world.Rank());
 96 .       Section->SetMarkerStyle(8);
 97 .       //send segment of points to root process
 98 .       world.SendObject(0, 1, *Section);
 99 .
100 .       world.BcastRecvScalar(angle,0); //recv angle to wave evolution
101 .       world.BcastRecvScalar(flag,0);//recv flag to stop
102 .       delete Section;
103 .       }
104 .        world.Abort(MPI_SUCCESS);
105 .   }
106 . }

Go to Index

WaveVideo

Reproductor Flash no disponible.

Created by Omar Andres Zapata Mesa.
Voice by Gerardo Gutierrez. (Thanks!)

Go to Index

Visits

Similar

Search Help

Non Advanced Search or Natural Search

The documents are returned sorted on relevance depending on order, proximity, frequency of terms.

Advanced Search or Boolean Search

Default search behavior

By default, all search terms are optional. It behaves like an OR logic. Objects that contain the more terms are rated higher in the results and will appear first in their type. For example, wiki forum will find:

objects that include both terms
objects that include the term wiki
objects that include the term forum

Requiring terms

Add a plus sign ( + ) before a term to indicate that the term must appear in results. Example: +wiki forum will find objects containing at least wiki. Objects with both terms and many occurences of the terms will appear first.

Excluding terms

Add a minus sign ( - ) before a term to indicate that the term must not appear in the results. To reduce a term's value without completely excluding it, use a tilde. Example: -wiki forum will find objects that do not contain wiki but contain forum

Grouping terms

Use parenthesis ( ) to group terms into subexpressions. Example: +wiki +(forum blog) will find objects that contain wiki and forum or that contain wiki and blog in any order.

Finding phrases

Use double quotes ( " " ) around a phrase to find terms in the exact order, exactly as typed. Example: "Alex Bell" will not find Bell Alex or Alex G. Bell.

Using wildcards

Add an asterisk ( * ) after a term to find objects that include the root word. For example, run* will find:

objects that include the term run
objects that include the term runner
objects that include the term running

Reducing a term's value

Add a tilde ( ~ ) before a term to reduce its value indicate to the ranking of the results. Objects that contain the term will appear lower than other objects (unlike the minus sign which will completely exclude a term). Example: +wiki ~forum will rate an object with only wiki higher that an object with wiki and forum.

Changing relevance value

Add a less than ( < ) or greater than ( > ) sign before a term to change the term's contribution to the overall relevance value assigned to a object. Example: +wiki +(>forum < blog) will find objects that contain wiki and forum or wiki and blog in any order. wiki forum will be rated higher.
